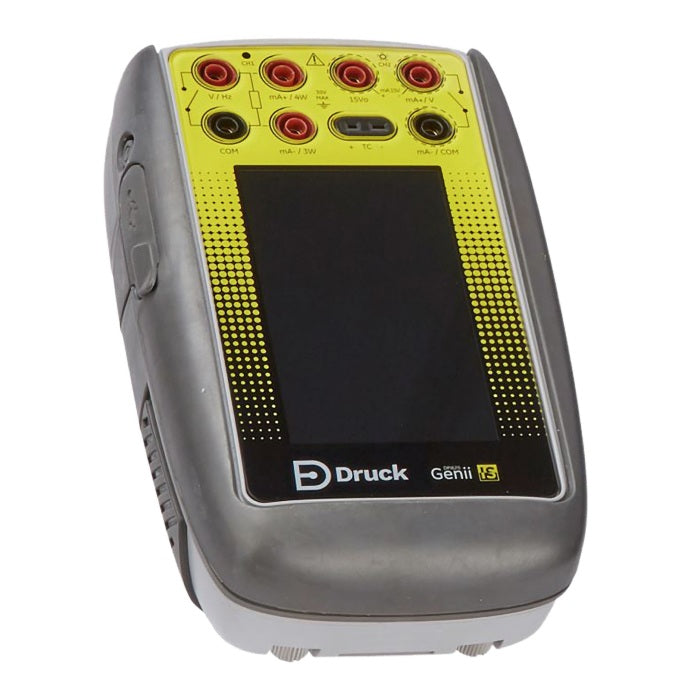

Druck DPI620G-IS Genii Advanced Modular Calibrator with HART Communicator (ATEX)

The Druck’s DPI620G series is an advanced, modular multi-function calibrator and optional HART/Foundation Fieldbus communicator with world-class pressure measurement and generation. Building on over half a century of market-leading pressure expertise, the DPI620G is at the pinnacle of modular, portable calibrator offering and is at the heart of the Genii Advanced Modular Calibration System.

With ATEX, IECEx, and ETL-approved intrinsically safe versions available for use in hazardous areas, the DPI620G platform is the preferred choice for countless operators across the globe. The DPI620G provides simultaneous measurement and source capabilities for the setup, testing, and calibration of most types of process instruments, including transmitters, transducers, gauges/indicators, switches, proximity detectors, counters, RTDs, thermocouples, and valve positioners.

Features

● 14x safe area and 5x hazardous area models to satisfy budget and application requirements from a basic, electrical calibrator to a multifunction calibrator with HART, Profibus, and Fieldbus.

● Can be used with pressure modules and a module carrier or a pressure base station.

● High-resolution touch display and UI supporting gestures and swipes for a flatter menu structure and greater ease of use.

● HART and Foundation Fieldbus digital communication with complete device description libraries, internal modems, and free of charge upgrades.

● Autonomous calibration wizard to store procedures and calibration data.

● Data log up to six channels simultaneously.

● Provided with one Freemium 4Sight2 calibration software license.

Note: For comprehensive details, including technical specifications, model variants, and ordering information, please refer to the attached datasheet.

Druck DPI620G Series Datasheet
