PCE-T 1220 Data Logger Thermometer (12-Channel)

With the 12-Channel Data Logger Thermometer, the measured values of several temperature sensors can be recorded, displayed, and archived simultaneously. It supports eight thermocouple types (K, J, E, T, N, S, R, B) and can be connected to 12 measuring channels. The large measuring range of -200 ... 1800°C / -328 ... 3272°F makes the 12-channel data logger thermometer ideal for a wide range of applications - from cryogenic temperatures to high-temperature processes. Particularly noteworthy is the high measuring accuracy, especially with type K thermocouples with ± (0.04% of the mean value + 0.3 K).

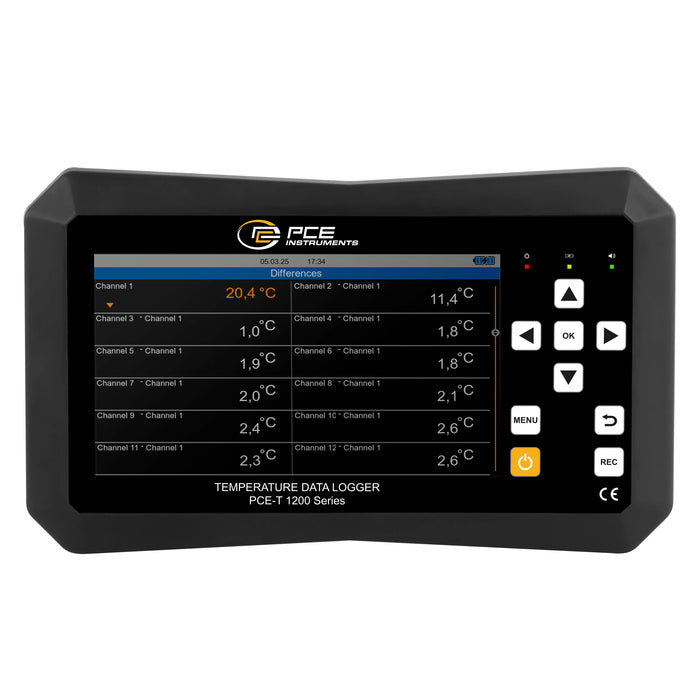

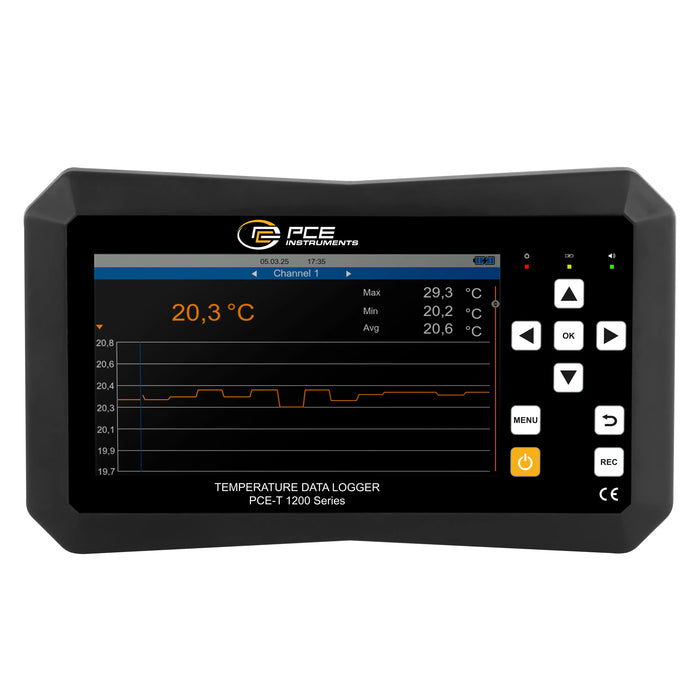

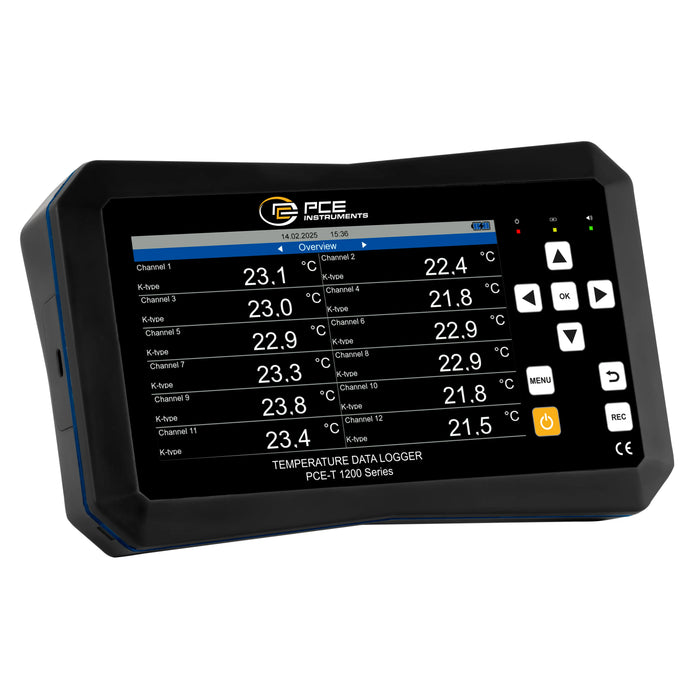

The measured values of the 12-channel data logger thermometer are displayed on a large 7-inch display, which provides a clear and easy-to-read visualization of all 12 measured temperatures. In addition, the maximum, minimum, and average values since the start of measurement can be displayed in a separate view. Each channel can be compared individually with the other channels, with the current measured value and the difference relative to a selected reference channel displayed.

Another highlight of the 12-channel data logger thermometer is the long battery life: with a measuring interval of 10 minutes, the data logger lasts up to 24 days in battery mode.
