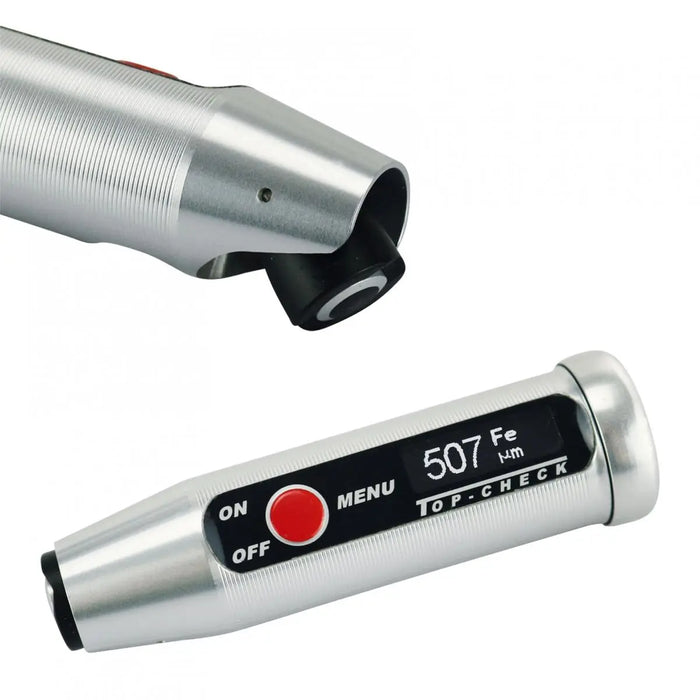

The LM-TC-DUAL coating thickness gauge has a globally unique measuring probe that can be swiveled through 90°, allowing you to always carry out precise coating thickness measurements. The coating thickness gauge with the compact, lightweight devices is barely larger than a measuring probe and is therefore ideal for on-site applications in hard-to-reach places. The handy metal housing is splash-proof to IP64 for interference-free measurements in harsh environments. A coating thickness gauge with flowing water protection is also available as an option. For a long service life with frequent measurements on rough surfaces, the measuring probe has a wear-resistant ruby probe pole. With a single button and the self explanatory, multilingual menu navigation, the coating thickness gauge is very easy to operate.

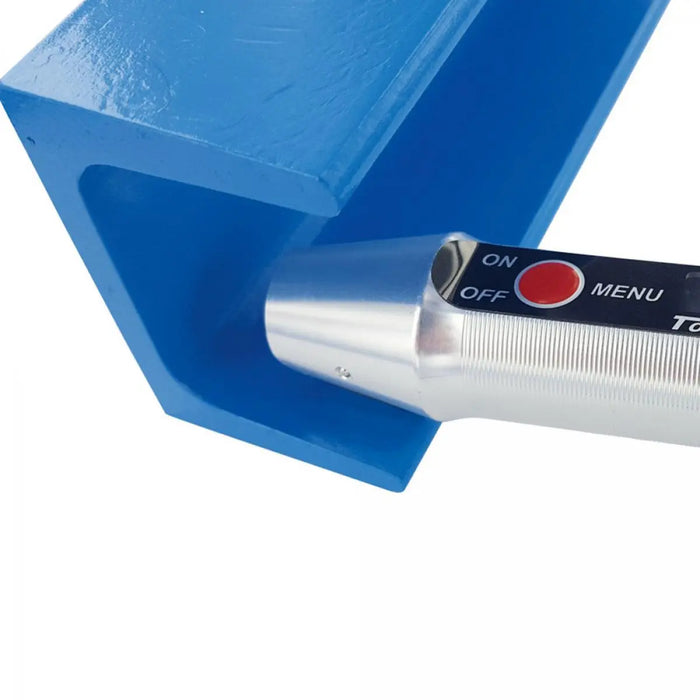

The LM-TC-DUAL is usually used in the quality assurance of coating processes. For example, to determine the paint thickness of a coating, when testing vehicles or steel structures or in fire protection (determining the coating thickness of steel doors). However, it is not only a coating thickness gauge, but can also be used to reliably measure rubber coatings, anodizing and galvanic coatings.
It uses a combined probe to measure insulating layers of paint, varnish, plastic, rubber, ceramic and galvanic coatings (excluding nickel) using the magnetic induction measuring method. The device is used on iron and steel substrates. It is also suitable for measuring insulating coatings (paint, plastic, etc.) using the eddy current method on non-ferrous metals such as aluminum, brass, copper, bronze and non-magnetic stainless steels in accordance with ISO 2178 and ISO 2360.
To further process your measurement data, you can connect your coating thickness gauge to mobile Android and iOS devices. Or you can communicate with a Windows PC. Wireless technology makes it possible. With the Lima Connect app, you can manage projects and allocate the measuring points on a photo. The measurement results can be statistically analysed and displayed graphically. The app for Android, iOS and Windows is free of charge.
Features
● Swivelling probe
● Simple measurements in hard-to-reach places
● for FE / nFE metals
● Wireless interface for Windows, iOS and Android
● OLED display
● IP64 housing
