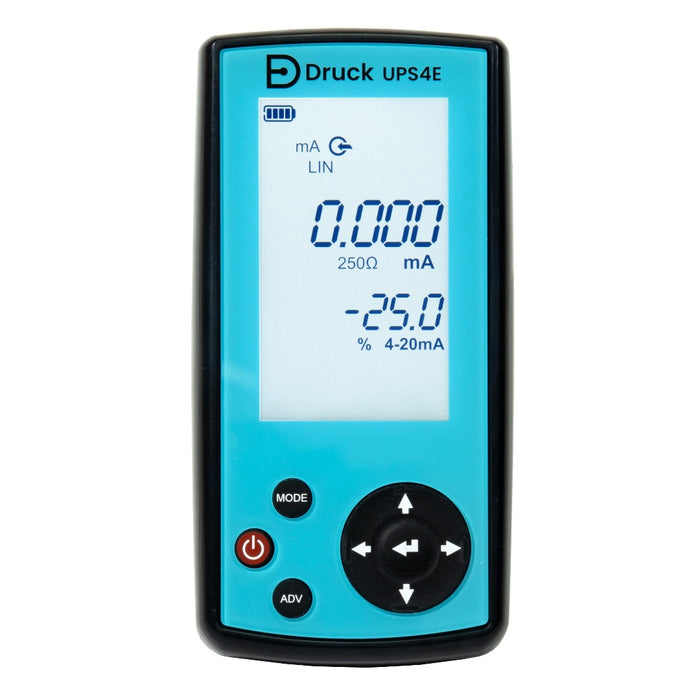

Druck UPS4E Handheld Electrical Loop Calibrator

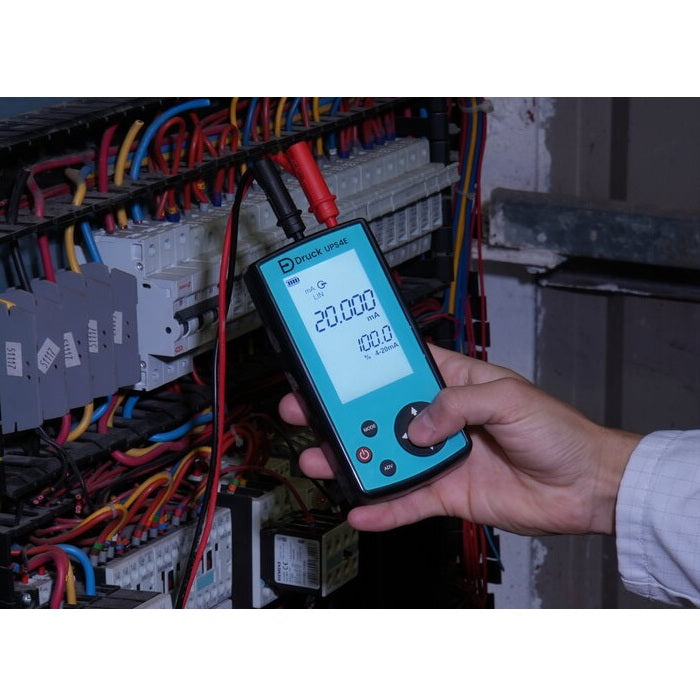

The Druck UPS4E handheld electrical loop calibrator is a rugged and extremely compact loop calibrator, designed to be operated with one hand. It is an essential tool for loop testing/powering process control mA loops and mA devices. Perfect for instrument maintenance with an easy-to-read display and simple-to-use time-saving features including step, span, and valve check. The UPS4E utilises the most advanced electrical calibration technology to create a dependable, cost-effective loop calibrator.

Features and benefits

● Measure or source 0 to 24mA
● Accuracy 0.01% of reading + 1 count
● Dual mA and % readout, linear or flow
● Step, span check, valve check, ramp
● 30V DC measurement and continuity check
● 100,000 datalog points
● Built-in 250Ω resistor for supporting HART operation
● 24V DC loop power with mA measure or source mode
● Auto shutdown to conserve battery life

The Druck UPS4E is supplied with a quick start & safety guide, set of alkaline batteries, test leads, USB cable, and a calibration certificate.

Druck UPS4E Datasheet

Druck UPS4E User Manual

Accessories
