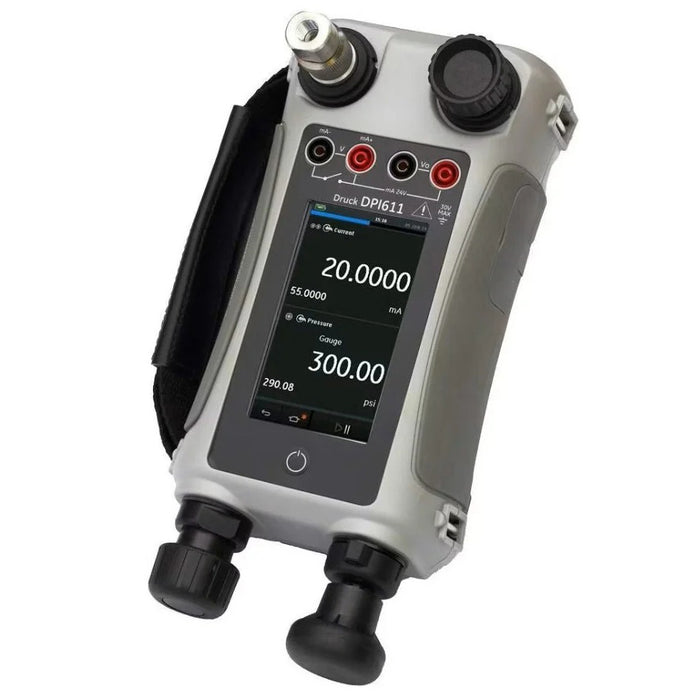

Druck DPI611 Handheld Pressure Calibrator -1 to 20 bar

The DPI611 is the fourth generation in the DPI600 family, which was first introduced in 1984. The DPI600 family revolutionized test and calibration by providing all the tools for pressure generation and signal measurement in self-contained portable packages. The DPI600 soon became the industry workhorse, and today it is simply known as the “Druck.” Building on the technical legacy and more than three decades of experience in pressure measurement and calibration, the DPI611 provides all the convenience and reliability of a true “Druck,” yet offers twice the performance in a product half the size.

Features of DPI611 Series

● 50% smaller and 33% lighter than the DPI610
● Creates 95% vacuum
● Pressure measurement is twice as accurate
● Three times better electrical accuracy
● Simplified touch screen interface with an application DASHBOARD, quick TASK selection, and FAVOURITES storage
● Fast, three-touch set-up for any application
● Calculates PASS/FAIL errors, documents results, and interfaces with calibration software
● Provided with one free 4Sight2 Lite calibration software license

Ordering Info

● DPI611-05G for -1 to 1 bar / -14.5 to 15 psi gauge range
● DPI611-07G for -1 to 2 bar / -14.5 to 30 psi gauge range
● DPI611-10G for -1 to 7 bar / -14.5 to 100 psi gauge range
● DPI611-11G for -1 to 10 bar / -14.5 to 150 psi gauge range
● DPI611-13G for -1 to 20 bar / -14.5 to 300 psi gauge range

Druck DPI611 Series Datasheet

Druck DPI611 Series User Manual

Druck DPI611 Series Quick Start Guide

Accessories
