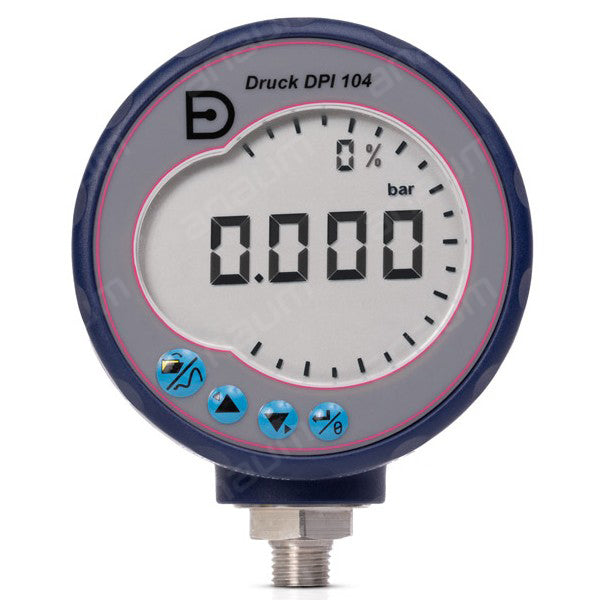

Druck DPI104 Digital Pressure Gauge

The Druck DPI104 Series of microprocessor-controlled digital pressure gauges combines precision and functionality in a compact, robust, and simple-to-use package. The DPI104 Series uses advanced silicon sensor technology with several convenient design features, resulting in an accurate, versatile, yet affordable digital pressure gauge. Supplied as a standalone process indicator or as part of a kit with the widely proven Druck hand pumps, the DPI104 Series provides a reliable and economical solution for a wide range of pressure-sensing applications.

Features

● 0.05% full scale (FS) accuracy
● Pressure ranges to 1400bar (20,000psi)
● Eleven selectable pressure units
● Large, easy-to-read display with five-digit resolution
● % pressure indication and additional bar graph for quick visual reference
● Temperature-compensated accuracy from -10 to 50°C (14 to 122°F)
● 0 to 5V analog output
● Pressure switch test
● Minimum/Maximum, Tare, and Alarm functions
● IDOS compatible and RS232 serial interface
● Hazardous Area (Intrinsically Safe) version available - DPI104-IS
● Stainless steel or Inconel pressure cavity for aggressive media

Note: Please refer to the attached datasheet for detailed ordering information.

Druck DPI104 Series Datasheet
